Has your dock and pier seen better days?

Let Fox Docks Marine Constructors, Lake Norman dock builders in Mooresville NC can breathe life back into your old dock and pier by installing new decking. If your dock is looking ran down and not floating the way it use to we can fix that too by adding new Formex or blue billet floatation along with new decking and shiny new dock rubbers. So help revitalize your dock and pier and increase the value of your waterfront property by contacting Fox Docks Lake Norman Dock Builders.

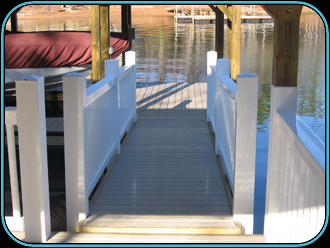

1st Picture: Pier and Entrance to the Seating Area

2nd Picture: Seating Area

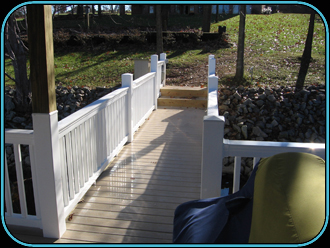

3rd Picture: Ramp leading to the Boathouse

Deal's Project

Re-decked Pier and Seating Area, Installed New Boathouse, Seating Area Roof, Ramp and New Boat Lift

* Pilings: Galvanized telescopic piling were driven into the lake bed to secure the boathouse.

* Frame: Consists of 2 x 8 and 2 x 10 pressure treated lumber fastened together with galvanized bolts.

* Floatation: Black Formex floats bolted to the frame with galvanized bolts.

* Dock Rubbers: Black Astro Nautics dock rubbers and extra padded corner dock rubbers were installed on the floating slip and fastened down with PolyTop nails.

* Boathouse and Seating Area Roof: The roofs have brown tin roofing with khaki colored Veka decking for the fascia board.

* Decking: Khaki colored Veka decking is installed and fastened down with stainless steel decking screws.

* Handrail Posts and Handrails: 6 x 6 pressure treated handrail posts with vinyl sleeves, post caps and pickets where installed to the pier, ramp, and seating area.

* Boat Lift: The lift installed was a 6,000 lb aluminum US Cable Boat Lift.

Come sit and relax in the shade under one of Fox Docks Lake Norman dock builders perfectly crafted roofs installed to your dock or pier.
